MLP
Para essa atividade, uma sequência de passos foi seguida a fim de garantir a execução correta do MLP:
-
Inicialização da amostra;
-
Amostragem (\(x\)): \(n_{features} \times n_{amostras}\)
- Rótulos (\(y\)): \(n_{outputs} \times n_{amostras}\)
-
Definição de hiperparâmetros para o treinamento do modelo;
-
Pesos da camada oculta: (\(W^{(1)}\)) \(n_{features} \times n_{neurônios}\)
- Bias da camada oculta(\(b^{(1)}\)): \(n_{neurônios} \times n_{amostras}\)
- Pesos da camada de saída (\(W^{(2)}\)): \(n_{neurônios} \times n_{saídas}\)
- Bias da camada de saída (\(b^{(2)}\)): \(n_{saídas} \times n_{amostras}\)
- Função de ativação: \(f(x)\)
- Derivada da função de ativação: \(f'(x)\)
- Função de perda: \(\mathcal{L}\)
- Treino;
- Teste.
Exercício 1: Cálculo manual das etapas para um Multi-Layer Perceptron (MLP)
- Passo 1
{ .py title=main.py } samples_1 = np.array([[0.5, -0.2]]).T # n_features X n_samples labels_1 = np.array([[1]]) # n_outputs X n_samples
- Passo 2
main.py
W1_1 = np.array([[0.3, 0.2], [-0.1, 0.4]]) # n_features X n_neurons
b1_1 = np.array([[0.1], [-0.2]]) # n_neurons X n_samples
W2_1 = np.array([[0.5], [-0.3]]) # n_neurons X n_outputs
b2_1 = np.array([[0.2]]) # n_outputs X n_samples
activation_function_1 = lambda x: (np.exp(2 * x) - 1) / (np.exp(2 * x) + 1)
activation_function_1_derivative = lambda x: 1 - (activation_function_1(x)**2)
loss_function_1 = lambda y, y_pred: 0.5 * (y - y_pred)**2
loss_function_1_derivative = lambda y, y_pred: y - y_pred
Foi utilizada, conforme o enunciado do exercício, a função de perda Mean Squared Error (MSE) e a função de ativação \(tanh(x)\).
- Passo 3
main.py
kwargs_1 = {
"input": samples_1,
"output": labels_1,
"W_hidden": W1_1,
"b_hidden": b1_1,
"W_output": W2_1,
"b_output": b2_1,
"eta": eta_1,
"hidden_activation": activation_function_1,
"hidden_activation_d": activation_function_1_derivative,
"output_activation": activation_function_1,
"output_activation_d": activation_function_1_derivative,
"loss_function": loss_function_1,
"loss_function_d": loss_function_1_derivative
}
mlp_data_train_1 = data.MLP(**kwargs_1)
z1, h1, z2, y_pred = mlp_data_train_1.forward()
loss = mlp_data_train_1.loss_calculation(labels_1, y_pred)
dW1_1, db1_1, dW2_1, db2_1 = mlp_data_train_1.backpropagation(z1, h1, z2, y_pred)
W_hidden, b_hidden, W_output, b_output = mlp_data_train_1.update_weights(dW1_1, db1_1, dW2_1, db2_1)
data.py
class MLP:
def__init__(self, **kwargs):
self.input = kwargs.get("input")
self.output = kwargs.get("output")
self.W_hidden = kwargs.get("W_hidden")
self.b_hidden = kwargs.get("b_hidden")
self.W_output = kwargs.get("W_output")
self.b_output = kwargs.get("b_output")
self.eta = kwargs.get("eta", 0.001)
# Hidden layer
self.hidden_activation = kwargs.get("hidden_activation")
self.hidden_activation_d = kwargs.get("hidden_activation_d")
# Output layer (opcional)
self.output_activation = kwargs.get("output_activation", None)
self.output_activation_d = kwargs.get("output_activation_d", None)
# Loss
self.loss_function = kwargs.get("loss_function")
self.loss_function_d = kwargs.get("loss_function_d")
def forward(self):
# Hidden layer
# z1_pre: (n_neurons X n_samples);
# W1: (n_neurons X n_feat); input: (n_feat X n_samples); b1: (n_neurons X n_samples)
z1_pre = self.W_hidden.T @ self.input + self.b_hidden
z1_act = self.hidden_activation(z1_pre)
# Output layer
# z2_pre: (n_outputs X n_samples);
# W2: (n_outputs X n_neurons); z1_act: (n_neurons X n_samples); b2: (n_outputs X n_samples)
z2_pre = self.W_output.T @ z1_act + self.b_output
if self.output_activation:
z2_act = self.output_activation(z2_pre)
else:
z2_act = z2_pre
return z1_pre, z1_act, z2_pre, z2_act
def loss_calculation(self, true_label, predicted_label):
return self.loss_function(true_label, predicted_label)
def backpropagation(self, z1_pre, z1_act, z2_pre, z2_act):
# formato n_output X n_samples
output_error = self.loss_function_d(self.output, z2_act)
if self.output_activation_d:
output_error *= self.output_activation_d(z2_pre)
# formato n_neurons X n_samples
hidden_error = (self.W_output @ output_error) * self.hidden_activation_d(z1_pre)
# Gradientes
W_output_gradient = z1_act @ output_error.T
b_output_gradient = np.sum(output_error, axis=1, keepdims=True)
W_hidden_gradient = self.input @ hidden_error.T
b_hidden_gradient = np.sum(hidden_error, axis=1, keepdims=True)
return W_hidden_gradient, b_hidden_gradient, W_output_gradient, b_output_gradient
def update_weights(self, W_hidden_gradient, b_hidden_gradient,
W_output_gradient, b_output_gradient):
self.W_hidden -= self.eta * W_hidden_gradient
self.b_hidden -= self.eta * b_hidden_gradient
self.W_output -= self.eta * W_output_gradient
self.b_output -= self.eta * b_output_gradient
return self.W_hidden, self.b_hidden, self.W_output, self.b_output
Os resultados do backward pass para as camadas oculta (1) e de saída (2) foram:
\(\frac{\partial \mathcal{L}}{\partial W^{(1)}} \approx \begin{bmatrix} 0.26179727 & 0.22385243 \cr -0.08471891 & 0.39045903 \end{bmatrix}\)
\(\frac{\partial \mathcal{L}}{\partial b^{(1)}} \approx \begin{bmatrix} 0.02359454 \cr -0.15229515 \end{bmatrix}\)
\(\frac{\partial \mathcal{L}}{\partial W^{(2)}} \approx \begin{bmatrix} 0.45670643 \cr -0.27075481 \end{bmatrix}\)
\(\frac{\partial \mathcal{L}}{\partial b^{(2)}} \approx 0.03577581\)
Exercício 2: Classificação binária com dados sintéticos
- Passo 1
{main.py
N_FEATURES_2 = 2
N_OUTPUT_2 = 1
N_NEURONS_2 = 10
SAMPLE_SIZE_2 = 1000
TRAIN_SIZE = .8
samples_1_2, samples_labels_1_2 = make_classification(n_samples=SAMPLE_SIZE_2 // 2,
n_classes=1,
n_clusters_per_class=1,
n_features=N_FEATURES_2,
n_informative=2,
n_redundant=0,
random_state=21,
class_sep=2.0)
samples_2_2, samples_labels_2_2 = make_classification(n_samples=SAMPLE_SIZE_2 // 2,
n_classes=1,
n_clusters_per_class=2,
n_features=N_FEATURES_2,
n_informative=2,
n_redundant=0,
random_state=42,
class_sep=2.0)
samples_labels_1_2[:] = 0
samples_labels_2_2[:] = 1
samples_total_2 = np.concatenate((samples_1_2, samples_2_2))
samples_total_labels_2 = np.concatenate((samples_labels_1_2, samples_labels_2_2))
shuffled_samples_total_2, shuffled_samples_total_labels_2 = data.shuffle_sample(sample_array=samples_total_2, labels_array=samples_total_labels_2)
O tamanho da amostragem é de 1000, com 2 classes, 2 features e 16 neurônios para a camada oculta. Como é um problema de classificação binária, o número de outputs é de 1 (0 ou 1).
A imagem (ref) ilustra graficamente a relação entre as features.
 |
|---|

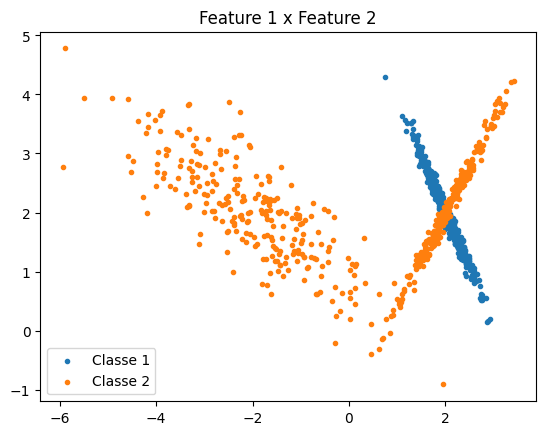

| Figura 1: Amostragem para o exercício 2 |
- Passo 2
main.py
val = (6 / (N_FEATURES_2 + N_OUTPUT_2))**.5
W1_2 = np.random.uniform(-val, val, size=(N_FEATURES_2, N_NEURONS_2))
W2_2 = np.random.uniform(-val, val, size=(N_NEURONS_2, N_OUTPUT_2))
b1_2 = np.zeros((N_NEURONS_2, 1)) # n_neurons X n_sample (train)
b2_2 = np.zeros((N_OUTPUT_2, 1))
train_sample_2, test_sample_2, train_sample_labels_2, test_sample_labels_2 = data.train_test_split(shuffled_samples_total_2, shuffled_samples_total_labels_2, TRAIN_SIZE)
train_sample_2 = train_sample_2.T
test_sample_2 = test_sample_2.T
mu = np.mean(train_sample_2, axis=1, keepdims=True)
std = np.std(train_sample_2, axis=1, keepdims=True) + 1e-8
train_sample_norm_2 = (train_sample_2 - mu) / std
test_sample_norm_2 = (test_sample_2 - mu) / std
sigmoid = lambda x: 1 / (1 + np.exp(-x))
sigmoid_d = lambda x: sigmoid(x) * (1 - sigmoid(x))
eps = 1e-8
bce = lambda y, y_pred: -(y * np.log(y_pred + eps) + (1 - y) * np.log(1 - y_pred + eps))
bce_d = lambda y, y_pred: (y_pred - y) / ((y_pred + eps) * (1 - y_pred + eps))
Aqui, inicializamos os pesos com o método de Xavier/Glorot. No exercício, é utilizada a inicialização uniforme de Xavier, definida pela equação \(2.1\).
\[ x = \sqrt{\frac{6}{n_{inputs} + n_{outputs}}} \quad \text{(2.1)} \]
Foi utilizada a função de ativação sigmoide, pois os valores estão normalizados, juntamente à função de perda Binary Cross-Entropy (BCE), por se tratar de uma classificação binária.
- Passo 3
train.py
kwargs_2 = {"input": train_sample_norm_2,
"output": train_sample_labels_2,
"W_hidden": W1_2,
"b_hidden": b1_2,
"W_output": W2_2,
"b_output": b2_2,
"eta": .001,
"hidden_activation": sigmoid,
"hidden_activation_d": sigmoid_d,
"output_activation": sigmoid,
"output_activation_d": sigmoid_d,
"loss_function": bce,
"loss_function_d": bce_d}
mlp_object_train_2 = data.MLP(**kwargs_2)
epoch_losses = {100: [], 300: [], 500: []}
epoch_accuracy = {}
for n_epochs, losses in epoch_losses.items():
epoch_accuracy[n_epochs] = []
for epoch in range(n_epochs):
z1_pre, z1_activation, z2_pre, z2_activation = mlp_object_train_2.forward()
loss = mlp_object_train_2.loss_calculation(train_sample_labels_2, z2_activation)
losses.append(np.mean(loss))
y_pred = (z2_activation > 0.5).astype(int)
acc = np.mean(y_pred == train_sample_labels_2)
epoch_accuracy[n_epochs].append(acc)
W_hidden_gradient, b_hidden_gradient, W_output_gradient, b_output_gradient = mlp_object_train_2.backpropagation(z1_pre, z1_activation, z2_pre, z2_activation)
W_hidden, b_hidden, W_output, b_output = mlp_object_train_2.update_weights(W_hidden_gradient, b_hidden_gradient, W_output_gradient, b_output_gradient)
O treinamento foi realizado utilizando 100, 300 e 500 épocas, e foi avaliada de acordo com as perdas ao longo do treinamento, assim como a acurácia obtida.
 |
|---|

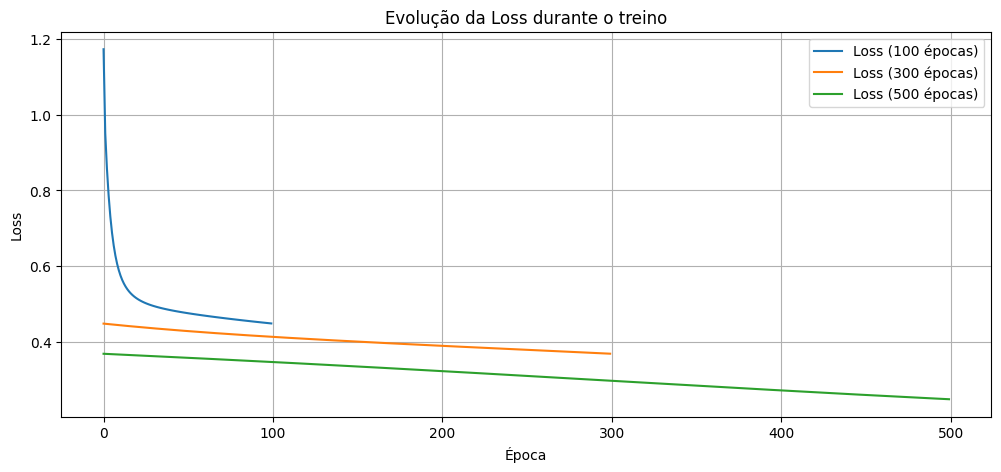

| Figura 2: Perda ao longo do treinamento |
 |
|---|

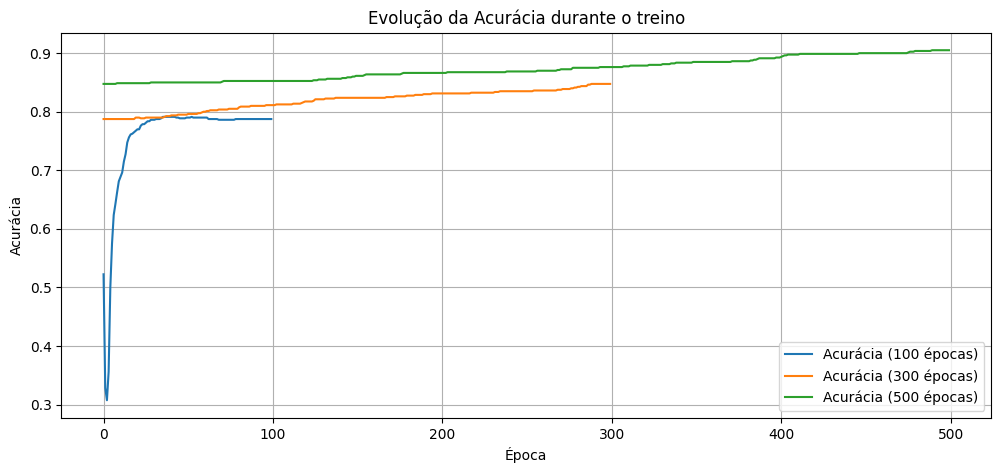

| Figura 3: Acurácia ao longo do treinamento |
- Passo 4
main.py
kwargs_test_2 = {
"input": test_sample_norm_2,
"output": test_sample_labels_2,
"W_hidden": W_hidden,
"b_hidden": b_hidden,
"W_output": W_output,
"b_output": b_output,
"eta": .001,
"hidden_activation": sigmoid,
"hidden_activation_d": sigmoid_d,
"output_activation": sigmoid,
"output_activation_d": sigmoid_d,
"loss_function": bce,
"loss_function_d": bce_d
}
mlp_object_test_2 = data.MLP(**kwargs_test_2)
z1_test_2, h1_test_2, z2_test_2, y_pred_test_2 = mlp_object_test_2.forward()
loss_test_2 = mlp_object_test_2 = data.MLP(**kwargs_test_2).loss_calculation(test_sample_labels_2, y_pred_test_2)
THRESHOLD = .5
y_pred = (y_pred_test_2 > THRESHOLD).astype(int)
acc_test = np.mean(y_pred == test_sample_labels_2)
Após o treinamento, foi obtida uma acurácia de \(90.50\%\), como esperado de acordo com o gráfico ilustrado na figura 3.
Exercício 3: Classificação multi-classe com dados sintéticos
- Passo 1
main.py
SAMPLE_SIZE_3 = 1500
N_FEATURES_3 = 4
N_INFORMATIVE_3 = 4
N_REDUNDANT_3 = 0
random_state = {"classe 0": 21,
"classe 1": 42,
"classe 2": 84}
n_cluters_per_class = {"classe 0": 2,
"classe 1": 3,
"classe 2": 4}
CLASS_SEP_3 = 2.0
N_CLASSES_3 = 3
N_NEURONS_3 = 128
samples_0_3, samples_labels_0_3 = make_classification(n_samples=SAMPLE_SIZE_3 // 3,
n_classes=1,
n_clusters_per_class=n_cluters_per_class["classe 0"],
n_features=N_FEATURES_3,
n_informative=N_INFORMATIVE_3,
n_redundant=N_REDUNDANT_3,
random_state=random_state["classe 0"],
class_sep=CLASS_SEP_3)
samples_1_3, samples_labels_1_3 = make_classification(n_samples=SAMPLE_SIZE_3 // 3,
n_classes=1,
n_clusters_per_class=n_cluters_per_class["classe 1"],
n_features=N_FEATURES_3,
n_informative=N_INFORMATIVE_3,
n_redundant=N_REDUNDANT_3,
random_state=random_state["classe 1"],
class_sep=CLASS_SEP_3)
samples_2_3, samples_labels_2_3 = make_classification(n_samples=SAMPLE_SIZE_3 // 3,
n_classes=1,
n_clusters_per_class=n_cluters_per_class["classe 2"],
n_features=N_FEATURES_3,
n_informative=N_INFORMATIVE_3,
n_redundant=N_REDUNDANT_3,
random_state=random_state["classe 2"],
class_sep=CLASS_SEP_3)
samples_labels_0_3[:] = 0
samples_labels_1_3[:] = 1
samples_labels_2_3[:] = 2
samples_total_3 = np.concatenate((samples_0_3, samples_1_3, samples_2_3))
samples_total_labels_3 = np.concatenate((samples_labels_0_3, samples_labels_1_3, samples_labels_2_3))
shuffled_samples_total_3, shuffled_samples_total_labels_3 = data.shuffle_sample(sample_array=samples_total_3, labels_array=samples_total_labels_3)
A figura 4 mostra um gráfico da distribuição das amostras em relação à 2 features.
 |
|---|

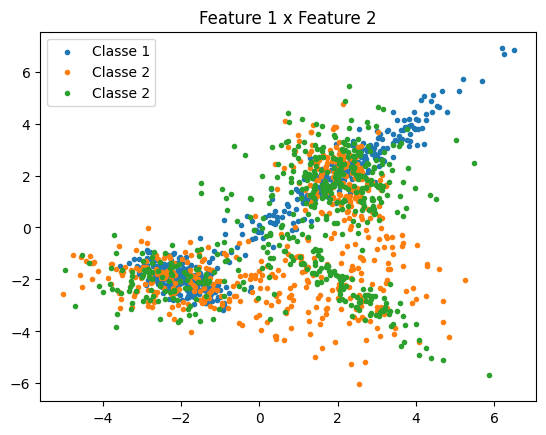

| Figura 4: Amostragem para o exercício 3 |
- Passo 2
main.py
val = (6 / (N_FEATURES_3 + N_CLASSES_3))**.5
W1_3 = np.random.uniform(-val, val, size=(N_FEATURES_3, N_NEURONS_3))
W2_3 = np.random.uniform(-val, val, size=(N_NEURONS_3, N_CLASSES_3))
b1_3 = np.zeros((N_NEURONS_3, 1))
b2_3 = np.zeros((N_CLASSES_3, 1))
train_sample_3, test_sample_3, train_sample_labels_3, test_sample_labels_3 = data.train_test_split(shuffled_samples_total_3, shuffled_samples_total_labels_3)
train_sample_3 = train_sample_3.T
test_sample_3 = test_sample_3.T
mu = np.mean(train_sample_3, axis=1, keepdims=True)
std = np.std(train_sample_3, axis=1, keepdims=True) + 1e-8
train_sample_norm_3 = (train_sample_3 - mu) / std
test_sample_norm_3 = (test_sample_3 - mu) / std
tanh = lambda x: (np.exp(2*x) - 1) / (np.exp(2*x) + 1)
tanh_d = lambda x: 1 - tanh(x)**2
def softmax(z):
exp_z = np.exp(z - np.max(z, axis=0, keepdims=True))
return exp_z / np.sum(exp_z, axis=0, keepdims=True)
def cce(y, y_pred, eps=1e-8):
N = y.shape[1]
return -np.sum(y * np.log(y_pred + eps)) / N
def cce_d(y, y_pred):
N = y.shape[1]
return (y_pred - y) / N
Nesse exercício, utilizamos a função de ativação \(tanh(x)\), visto que a amostra foi normalizada, e \(softmax(x)\), que é adequada para problemas de classificação multi-classe. Para avaliação, foi utilizada a função de perda Categorical Cross-Entropy.
- Passo 3
main.py
THRESHOLD_3 = .5
activation_array = [tanh, softmax]
activation_d_array = [tanh_d, None]
kwargs_train_3 = {
"input": train_sample_norm_3,
"output": train_labels_onehot_3,
"W_hidden": W1_3,
"b_hidden": b1_3,
"W_output": W2_3,
"b_output": b2_3,
"eta": .001,
"hidden_activation": activation_array[0],
"hidden_activation_d": activation_d_array[0],
"output_activation": activation_array[1],
"output_activation_d": activation_d_array[1],
"loss_function": cce,
"loss_function_d": cce_d
}
mlp_object_train_3 = data.MLP(**kwargs_train_3)
epoch_losses_3 = {100: [], 300: [], 500: []}
epoch_accuracy_3 = {}
batch_size = 32
N = train_sample_norm_3.shape[1]
for n_epochs, losses in epoch_losses_3.items():
epoch_accuracy_3[n_epochs] = []
for epoch in range(n_epochs):
epoch_correct = 0
epoch_count = 0
epoch_loss_accum = 0.0
for start in range(0, N, batch_size):
end = min(start + batch_size, N)
sample_batch = train_sample_norm_3[:, start:end]
labels_batch = train_labels_onehot_3[:, start:end]
mlp_object_train_3.input = sample_batch
mlp_object_train_3.output = labels_batch
z1_pre_train_3, z1_activation_train_3, z2_pre_train_3, z2_activation_train_3 = mlp_object_train_3.forward(
)
# ==============================================================
# Armazenando a loss para plotar no gráfico depois
loss = mlp_object_train_3.loss_calculation(labels_batch,
z2_activation_train_3)
if np.ndim(loss) > 0:
loss = np.mean(loss)
B = end - start
epoch_loss_accum += loss * B
# ==============================================================
# ==============================================================
# Armazenando a acurácia do modelo para plotar no gráfico depois
preds_idx = np.argmax(z2_activation_train_3, axis=0)
true_idx = np.argmax(labels_batch, axis=0)
epoch_correct += np.sum(preds_idx == true_idx)
epoch_count += B
# ==============================================================
# ==============================================================
# Backpropagation
dW1_train_3, db1_train_3, dW2_train_3, db2_train_3 = mlp_object_train_3.backpropagation(
z1_pre_train_3, z1_activation_train_3, z2_pre_train_3,
z2_activation_train_3)
# ==============================================================
# ==============================================================
# Ajustando os parâmetros para o próximo batch
W_hidden_train_3, b_hidden_train_3, W_output_train_3, b_output_train_3 = mlp_object_train_3.update_weights(
dW1_train_3, db1_train_3, dW2_train_3, db2_train_3)
# ==============================================================
epoch_loss = epoch_loss_accum / epoch_count
epoch_acc = epoch_correct / epoch_count
losses.append(epoch_loss)
epoch_accuracy_3[n_epochs].append(epoch_acc)
Dessa vez, fazemos o treinamento em batches como tentativa de aumentar a qualidade do modelo.
- Passo 4
```{ kwargs_test_3 = { "input": test_sample_norm_3, "output": test_sample_labels_3, "W_hidden": W_hidden_train_3, "b_hidden": b_hidden_train_3, "W_output": W_output_train_3, "b_output": b_output_train_3, "eta": .001, "hidden_activation": activation_array[0], "hidden_activation_d": activation_d_array[0], "output_activation": activation_array[1], "output_activation_d": activation_d_array[1], "loss_function": cce, "loss_function_d": cce_d }
mlp_object_test_3 = data.MLP(**kwargs_test_3)
def accuracy_from_preds(z2_act, y_true): # z2_act: (M, N), y_true: one-hot (M, N) ou indices (N,) y_pred_idx = np.argmax(z2_act, axis=0) if y_true.ndim == 2: y_true_idx = np.argmax(y_true, axis=0) else: y_true_idx = y_true return np.mean(y_pred_idx == y_true_idx), y_pred_idx, y_true_idx
z1, h1, z2, y_pred_test = mlp_object_test_3.forward() acc_test, preds_idx, true_idx = accuracy_from_preds(y_pred_test, test_sample_labels_3) ```
A acurácia do modelo na amostragem de teste foi de \(83.58\%\).
